Digital Temperature Measurement with CAN Protocol

Using a CAN Temperature Sensor: In various applications such as engine systems, PEMS, fuel cells, and test benches, accurate temperature readings are essential and can be conveniently obtained through the CAN bus.

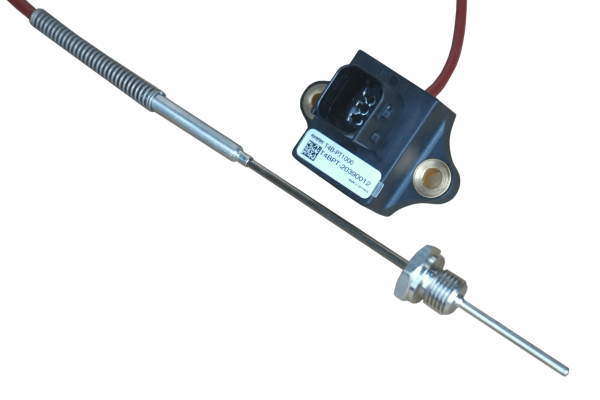

The T4BPT1000 is a reliable solution that converts PT1000 temperature measurements into a CAN signal, covering a wide temperature range of -50°C to 700°C. With its impressive accuracy of less than 3K throughout the wide range, it enables precise digital temperature measurements for all types of fluid flows in engine applications. It is suitable for measuring gases such as air, exhaust, hydrogen, blow-by, as well as liquids like cooling water, fuel, and oil, provided they are compatible with the stainless-steel temperature element. Optional high corrosion-resistant temperature sleeves are available upon request to meet specific requirements.

The PT1000 CAN Temperature sensor is designed with a screw-in immersion sleeve of G1/4″ size, featuring a 3mm diameter and 50mm immersion depth. Customized designs can be provided upon request to meet specific application requirements. The electronic unit is equipped with a robust TYCO HDSCS IP69 connection and complies with automotive specifications, ensuring reliable operation within a wide temperature range of -40°C to 125°C.
